CNC Laser machine series

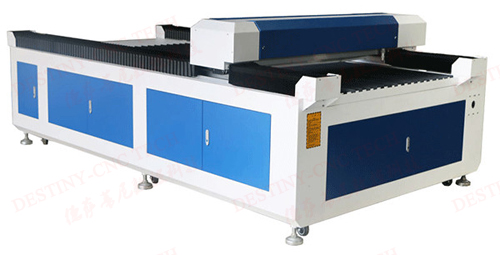

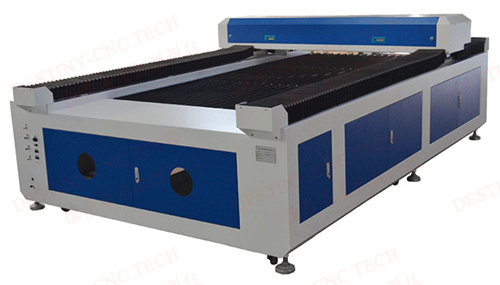

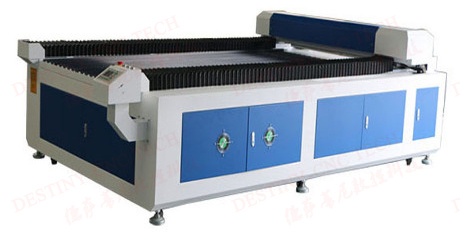

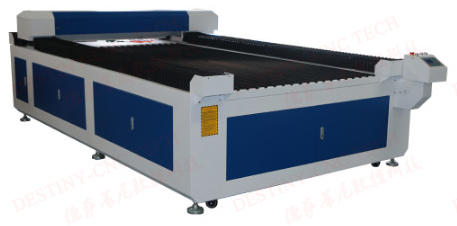

DT-1325/1530 CO2 Laser cutting machine

Introduction:DT-1325/1530 CO2 Laser cutting machine 1500mm*3000mm (X * Y axis )Belts &stepper motor or Ballscrews &Servo motor optional . For big material board cutting .
DT-1325/1530 CO2 Laser cutting machine

DESTINY-CNC TECH ideas: To be your counselor, to be your partner, to be your friends.


DT-1325 / 1530  CO2 Laser cutting bed machine (Belts or ballscrew transmission)

Machine parameters

Machine Model

DT-1325/ DT-1530 cutting bed

Working Size

1300mm*2500mm/ 51.2*98.5 inch

1500mm *3000mm / 59* 118 inch (X*Y axis )

Laser Power

80w/100w/150w/180w

Laser Type

Sealed CO2 glass laser tube, water-cooling ,10.6nm

Driving System

3-Phase Stepper Motor & Servo motor

Cutting Speed

0-50000mm/min  (1969 inch/min)

Engraving Speed

0-60000mm/min  (2362 inch/min)

Laser Output Control

1-100% software setting

Resetting Position Accuracy

≤±0.01

Transmission type

Belts transmission & stepper motor or Ballscrew &Servo

Smallest  Character

Chinese 2.0 *2.0mm English 1.0*1.0mm

Highest Scanning precision

2500 DPI

Power Supply

220V/50Hz,  110V/60Hz,

Operating Temperature

0-45

Operating Humidity

5-95%

Operating System

DSP CNC Control System in Win XP, Win 7

Graphic Format Supported

BMP, PLT, AI, DST, DXF

Software Supported

Corel draw, Photoshop, AutoCAD, Tajima

Optional device

Up &down table ,Rotary device ,Red light  pointer

Color separation

Yes



























Machine descriptions

DT-1325/1530 model laser cutting machine is made with big cutting bed body. The laser tube will move together the X axis frame at the same time to keep the laser stable . The worker can put the materail board around the machine .So it's more convenient .And the machine body is more strong and stable . The machine transmission system is optional . You can choose Belts and stepper motor transimission for engraving and cutting . Also you can choose Ball screw and servo motor transmission for cutting only . You can make a choice according your different material processing . This machine is better to cut thick plywood , MDF, Wood  ETC. die board cutting .

Suitable materials

Die board ,wood and plywood board ,Acrylic, Plexiglass, MDF ,leather, film, rubber,plastic, cloth, component materials etc.

Suitable Industry

Die board processing ,double faced adhesive material processing, printing and packing ,advertising decoration , furniture,  mode, art and craft etc.


After-sale service and Warranty

1.  Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.

2.  If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English,  they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve      yourself online .

3. There are detail machine operation manual and video CD sent together with the machine.


If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-CNC TECH welcome you .
