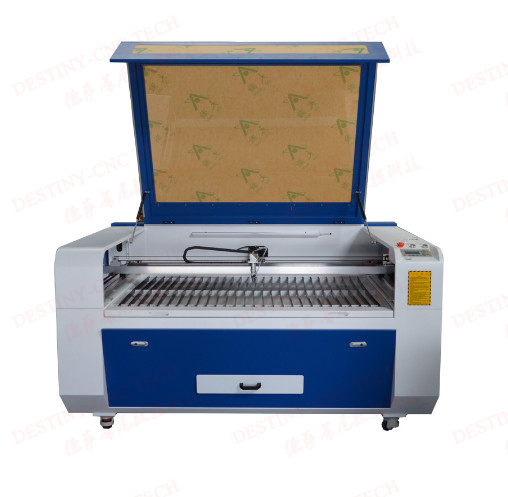

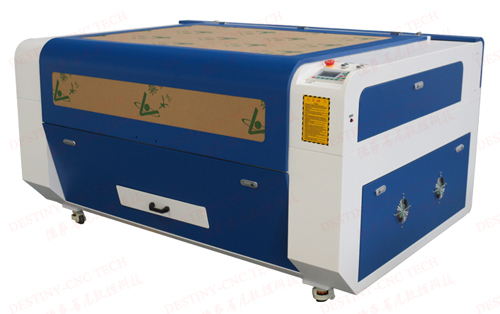

DT-1390 CO2 Laser cutting machine (Single or double heads)
Machine parameters
|
Machine Model
|
DT-1390
|
|
Working Size
|
1300*900 mm / 51.2 in*35.5 in (X*Y axis)
|
|
Laser Power
|
80w/100w/150w/180w
|
|
Laser Type
|
Sealed CO2 glass laser tube, water-cooling ,10.6nm
|
|
Driving System
|
3-Phase Stepper Motor &Belts transmission
|
|
Cutting Speed
|
0-50000mm/min (1969 inch/min)
|
|
Engraving Speed
|
0-70000mm/min (2756 inch/min)
|
|
Laser Output Control
|
1-100% software setting
|
|
Resetting Position Accuracy
|
≤±0.01
|
|
Smallest Character
|
Chinese 2.0 *2.0mm English 1.0*1.0mm
|
|
Highest Scanning precision
|
2500 DPI
|
|
Power Supply
|
220V/50Hz, 110V/60Hz,
|
|
Operating Temperature
|
0-45℃
|
|
Operating Humidity
|
5-95%
|
|
Operating System
|
DSP CNC Control System in Win XP, Win 7
|
|
Graphic Format Supported
|
BMP, PLT, AI, DST, DXF
|
|
Software Supported
|
Corel draw, Photoshop, AutoCAD, Tajima
|
|
Optional device
|
Up &down table ,Rotary device ,Red light pointer
|
|
Color separation
|
Yes
|
Machine descriptions
DT-1390 model is one new design CO2 laser cutting machine .Its hand handle , wire connectors, machine body , laser reflecting path, machine safe protecting etc. are new design.It's used more safe and easier . And its appearance is easier to be accepted. It's a fashionable products .There is big improvement on this model machine,including moving system and machines features. The outlook is more attractive, separated design is much easy for shipping and moving. Working efficient is much high mean while reduce the labor and lower the cost. This machine proved to be warm welcome by the customers.
Machine Advantages
1.With new material belt mold,which is high accurate and longer life.
2.Laser tube is separated with the working table, this make sure laser tube safety and laser path clean.
3. All the switches the plug base and other connections are not bulgy of surface of the machine,this make sure safety of the workers.
4.Low cost for using and maintenance
5.Higher cutting speed and efficiency
6. Smallest Character engraving:Chinese 2.0mm*2.0mm, English 1.0mm*1.0mm
7. Looks better , wih the proof glass door , more safe .
Applicable materials
Rubber ,Marble, granite, jeans, fabric, acrylic, MDF, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other non-metal materials etc.
Applicable industries
Advertisement,gift,shoes,toys,computers,gaments,model cutting, building,packaging,paper industry etc.
After-sale service and Warranty
1. Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.
2. If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English, they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,they also can go to your country to solve the machine problems if you can't solve yourself online .
3. There are detail machine operation manual and video CD sent together with the machine.
If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-CNC TECH welcome you .
