CNC Laser machine series

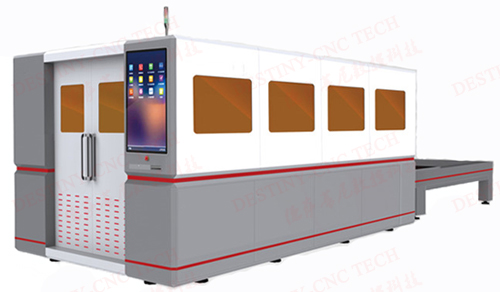

DT Auto-change platform 1000W/2000w/3000w Fiber laser cutting machine

Introduction:DT Auto-change platform 1000W/2000w/3000w Fiber laser cutting machine for high thickness metal sheet cutting with fast speed and high precision .
DT Auto-change platform 1000W/2000w/3000w Fiber laser cutting machine

DESTINY- CNC TECH ideas: To be your counselor, to be your partner, to be your friends.

DT Auto-change platform 1000W/2000w/3000w Fiber laser cutting machine

Machine parameters


Machine Model

DT Auto-change platform Fiber 1000w / 2000w / 3000w

Working area

1500×3000mm*2  59×118in*2

Laser power

1000W/2000W/ 3000W Raycus or IPG  brand fiber laser device

laser head

Imported Precitec laser head , with auto sensor, adjust focal distance automatically

Cutting thickness

0.2-10mm stainless steel / 0.2-20mm carbon steel

Cooling system

High power water chiller

Rated power

10-100%

Machine power

20KW

Laser wavelength

1080nm

X,Y-axis location accuracy

±0.01mm

X,Y-axis repeat location accuracy

±0.01mm

X,Y-axis fast moving speed

50m/min

X,Y-axis max cutting speed

30m/min

Min. cutting line width

0.02

Max. cutting thickness

Stainless steel 6-10mm     Carbon steel 15-20 mm

Max. cutting speed

25 m/ min

Machine size

7.5×2.5×2m

After-sale service

Technician available for training and installation


Machine configurations

Term

Model

Parts

Amount

Remark

1

DT-1530 FIBER laser machine

Machine bed

1 set

DESTINY-CNC TECH

2

Fiber laser source

1 set

China Raycus or Germany IPG

3

Laser head

1 set

Precitec

4

Water chiller

1 set

IPG Water chiller

5

Servo motor

3 sets

Panasonic

6

Control system

1 set

Bochu (Cypcut) system

7

Rack pinions

4 sets

Taiwan HIWIN

8

Valid working area

1500 * 3000mm *2





Machine Features

DT-1530 Autometic Switch platform 3000W Fiber laser cutting machine adopts the most sophisticated laser source, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine. It has good rigidity and stability with high precision rack pinions, linear guide drive run. It is mainly for cutting sheet metal in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting.

Machine advantages

1.Good beam quality: smaller focused spot, cutting lines more sophisticated, higher efficiency, better processing quality

2. Cutting speed: 2 times the same power over carbon dioxide laser cutting machine

3. Stable performance, laser life of up to 100,000 hours

4.Electro-optical conversion rate: Fiber laser cutting machine Electrical and optical conversion rate three times higher than carbon dioxide laser, energy saving

5.Low operating costs: the machine consumes about the same carbon dioxide laser cutting machine for 20-30%

6. Low maintenance costs: no laser working gas; optical fiber transmission, without reflection lenses; may save a lot of maintenance costs

7.Convenient operation and maintenance: fiber optic transmission, no need to adjust the optical path

8.Flexible light guide effect: small, compact, easy to flexible manufacturing needs

Applicable materials
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum.

Application Industries
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool pro cessing, adornment, advertising, metal foreign processing various manufacturing processing industries.

After-sale service and Warranty

1.  Two years guarantee for the whole laser machine. All the machines are produced according to standard to keep the quality.

2.  If the machine is with any problem, our technician will help to solve online first time by Skype, email ,Whatsapp, Wechat etc. or by phone if urgently . We have excellent engineers speaking English,  they are available at 24 hours .No time difference limitation . Can supply the solution for any problems. In addition ,for this kind laser cutting machine ,it's neccessay to send technician to go to your country to install and train if you demand .

3. There are detail machine operation manual and video CD sent together with the machine.


If you like it , please send us inquiry or contact with us for more detail information .We will offer our best solution for you .DESTINY-CNC TECH welcome you .
